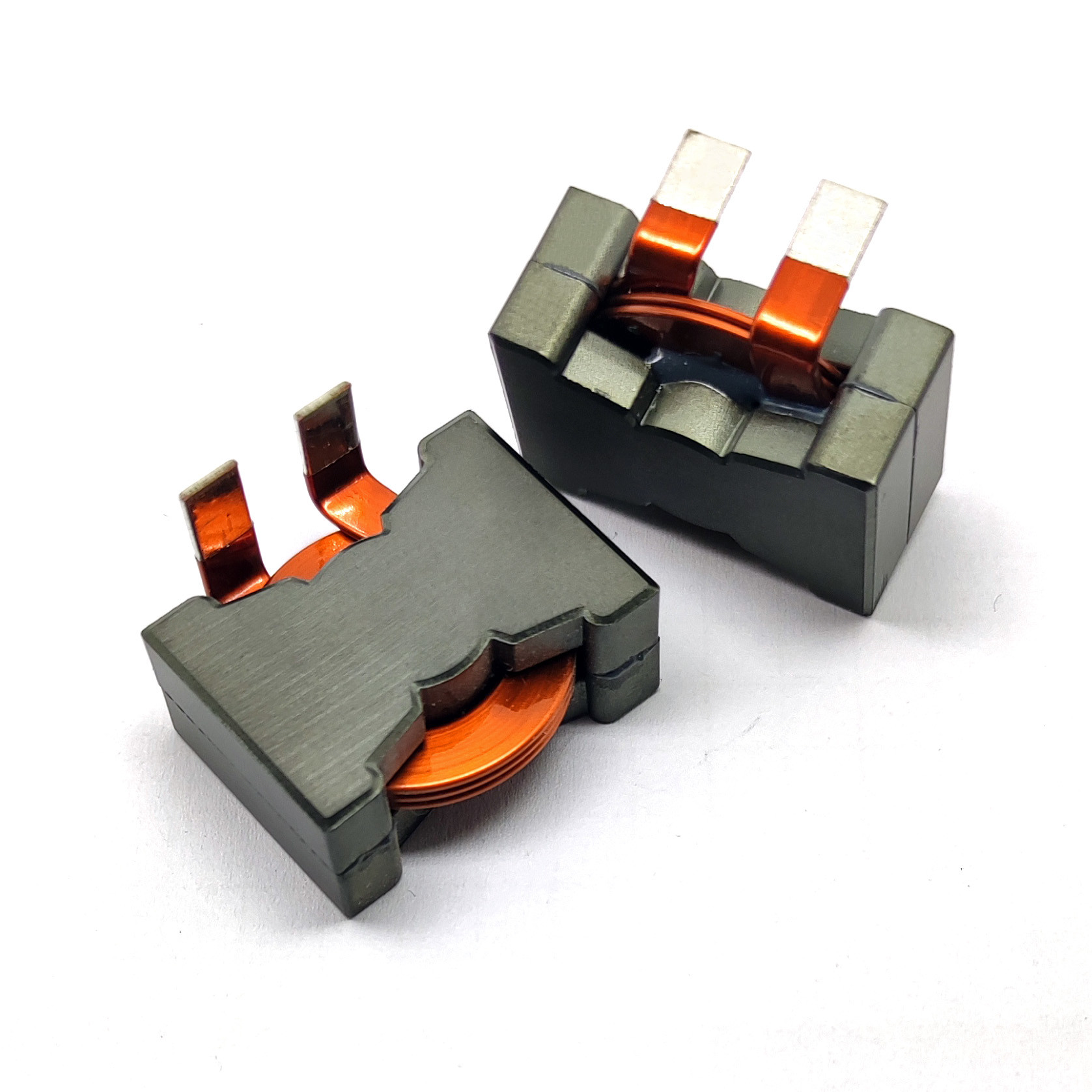

Flat Wire High Current Inductor Excellent Thermal Stability
Features Gallery Product Description Chat Now
Features
Specifications
Wire: Flat Copper Wire
Inductance Range: 3.3uH To 470uH
Test Frequency: 100KHz,0.1V
Tolerance: ±20%
Operating Temperature: -40℃ - +125℃
Current: Up To 98A
Highlight:

Flat Wire High Current Inductor

Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: DEPM Series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

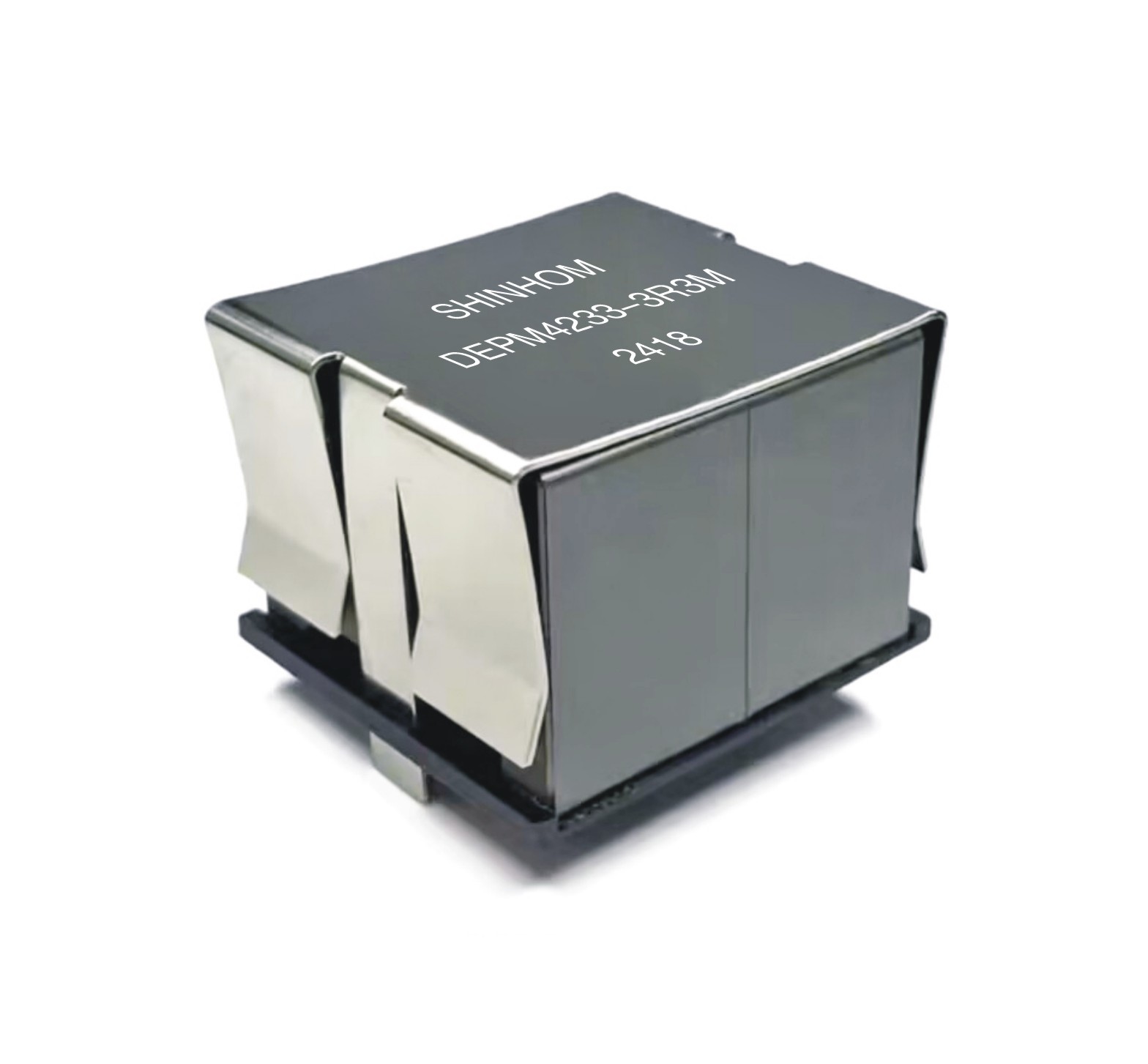

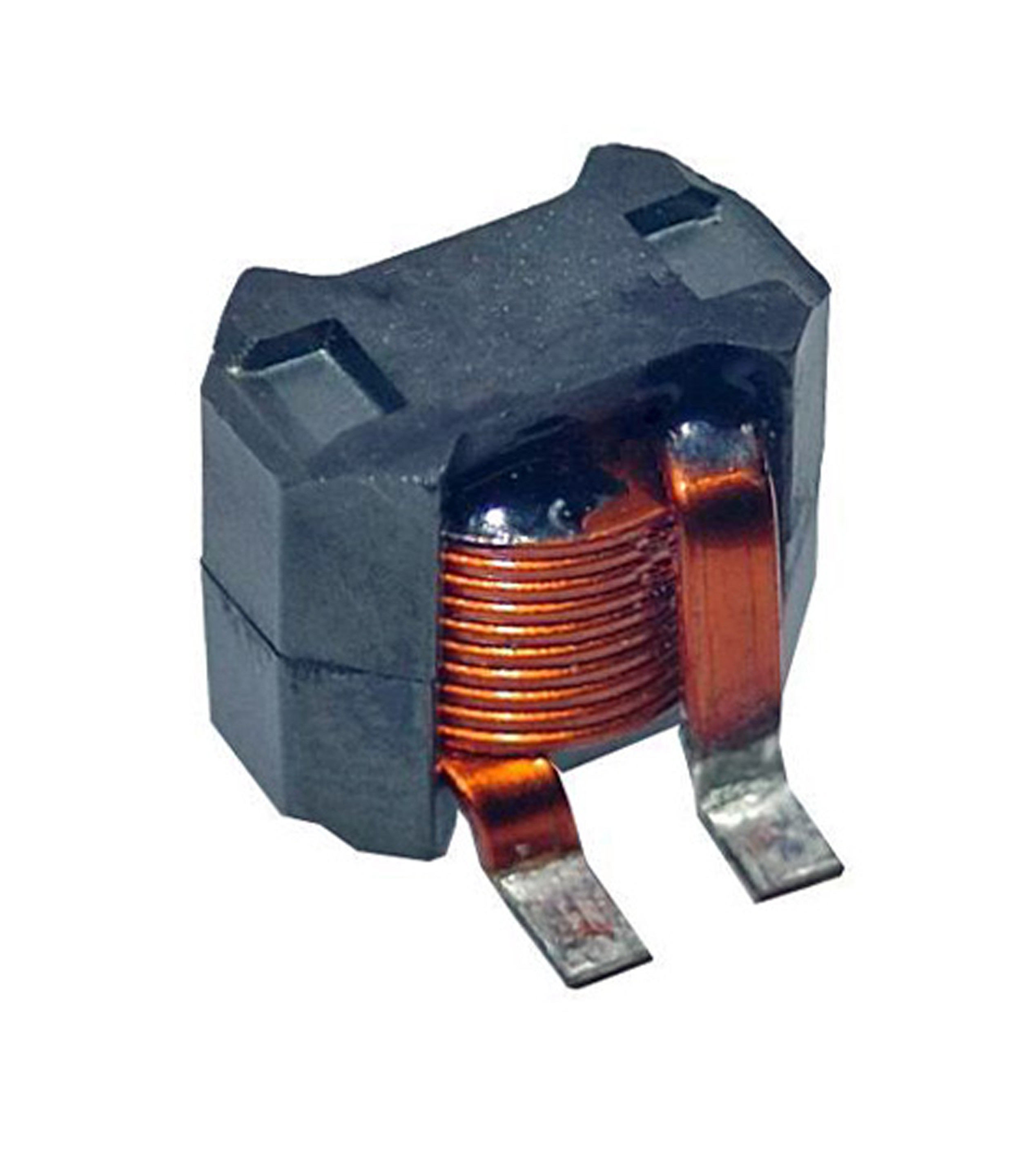

DEPM Series Flat wire, Low Profile, High Current Inductor Excellent Thermal Stability



FEATURES:

  • · Core material Ferrite
  • · AEC-Q200 Grade 1 (40℃ to +125℃)
  • · Flat wire windings provide extremely low DC and AC resistance.
  • · Through-hole mounting for excellent board adhesion
  • · Cover has solderable tabs for additional mounting stability.
  • · High current, high inductance power inductors designed for high current power supply applications
  • · RoHS compliant



Note: Product specifications can be customized.
