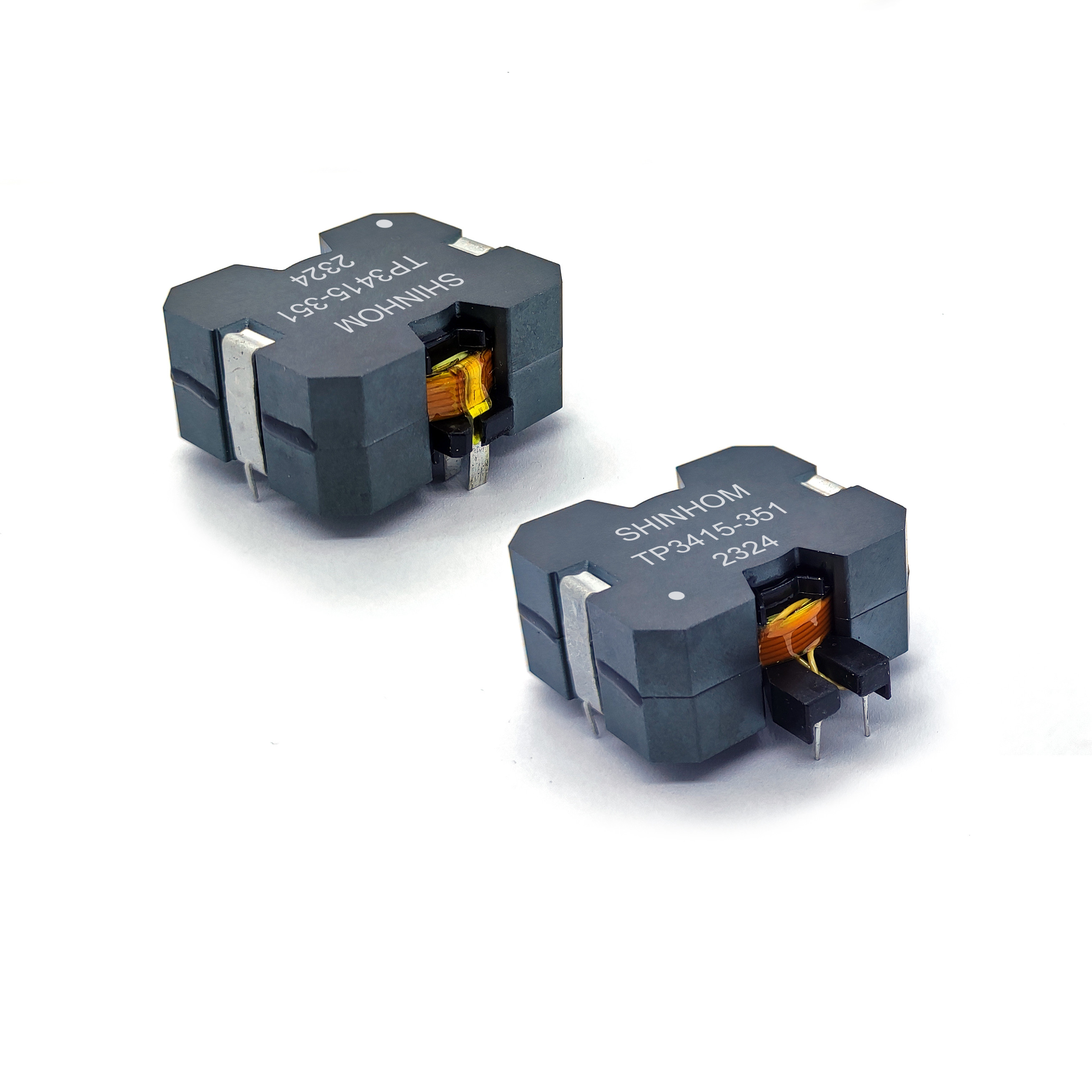

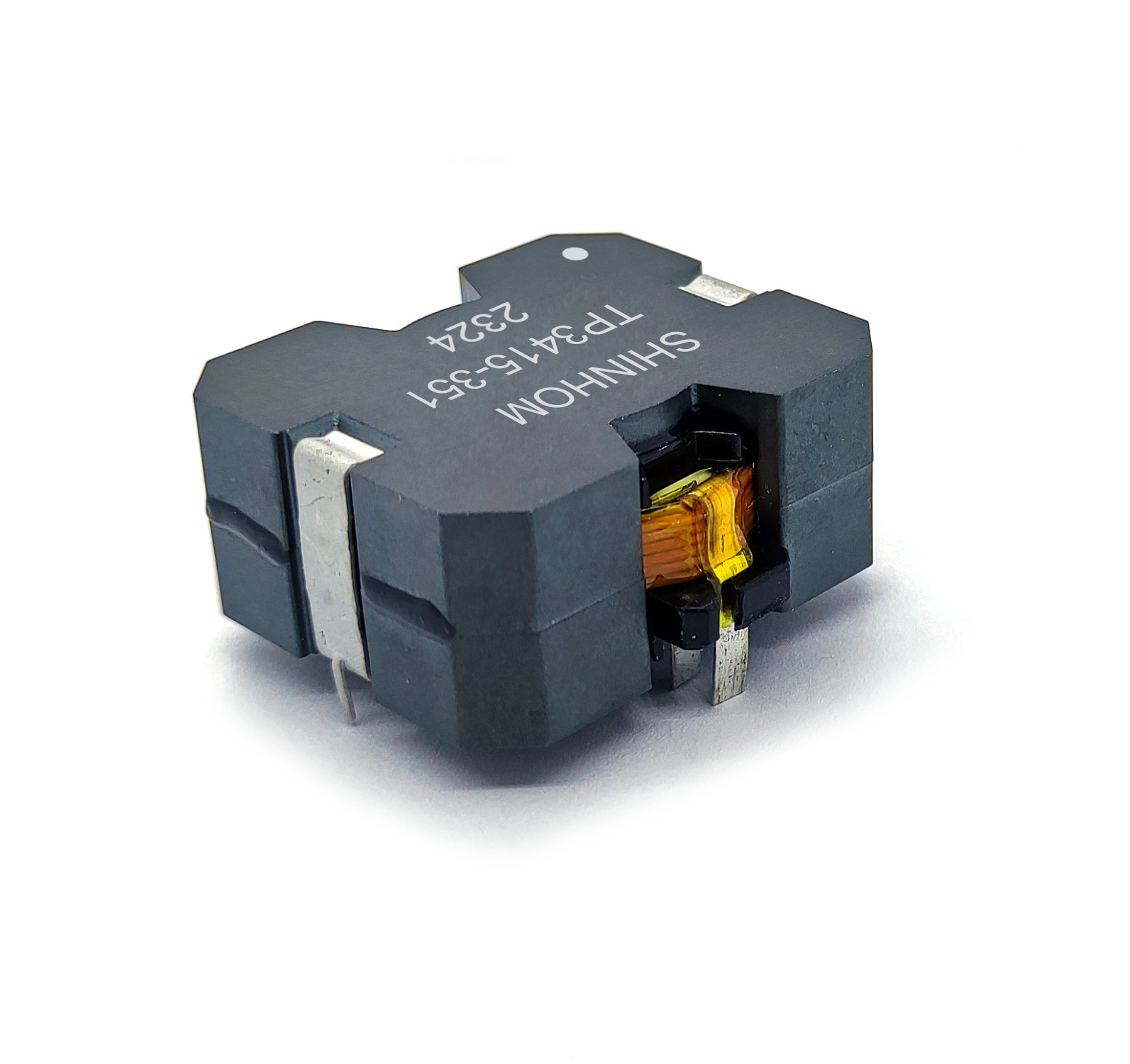

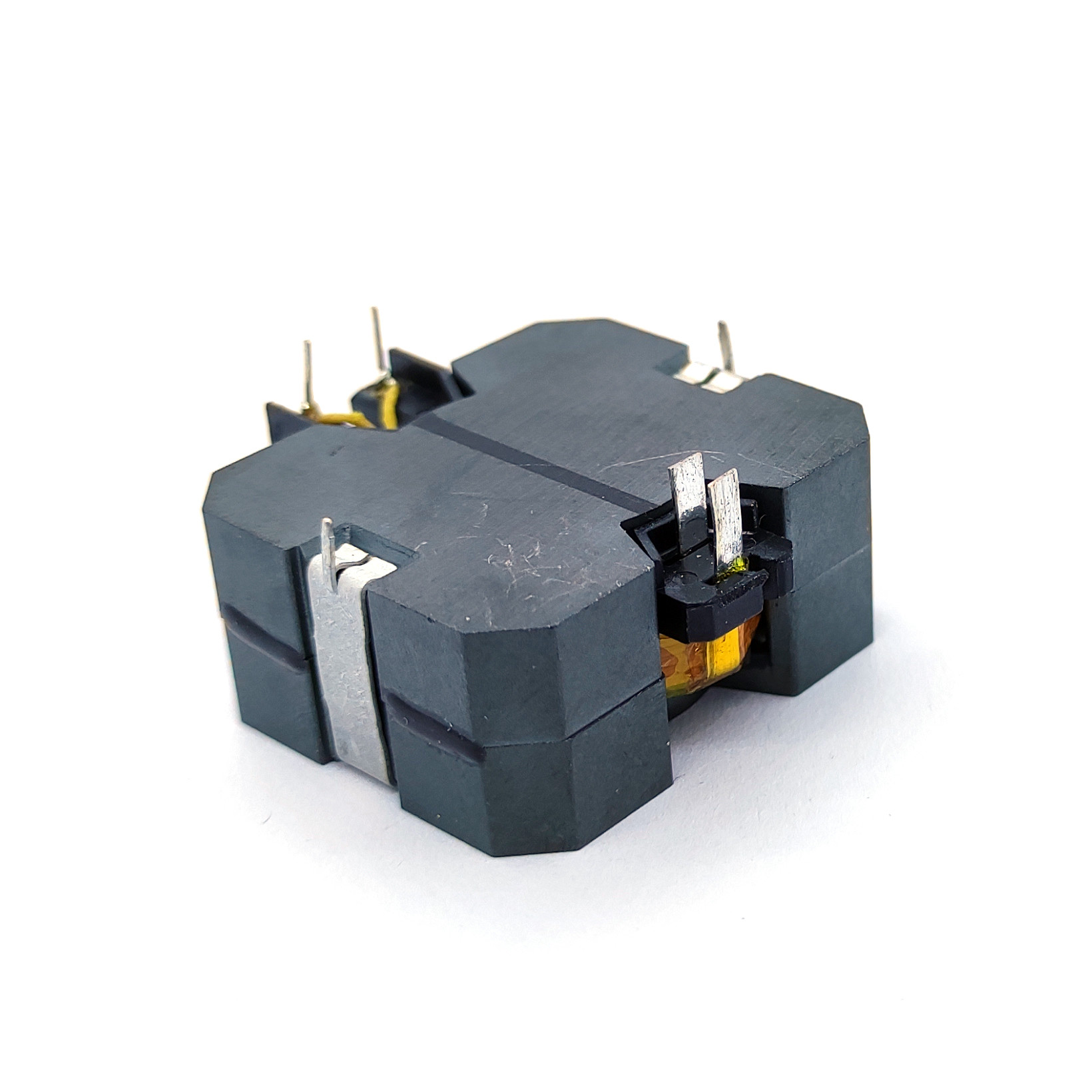

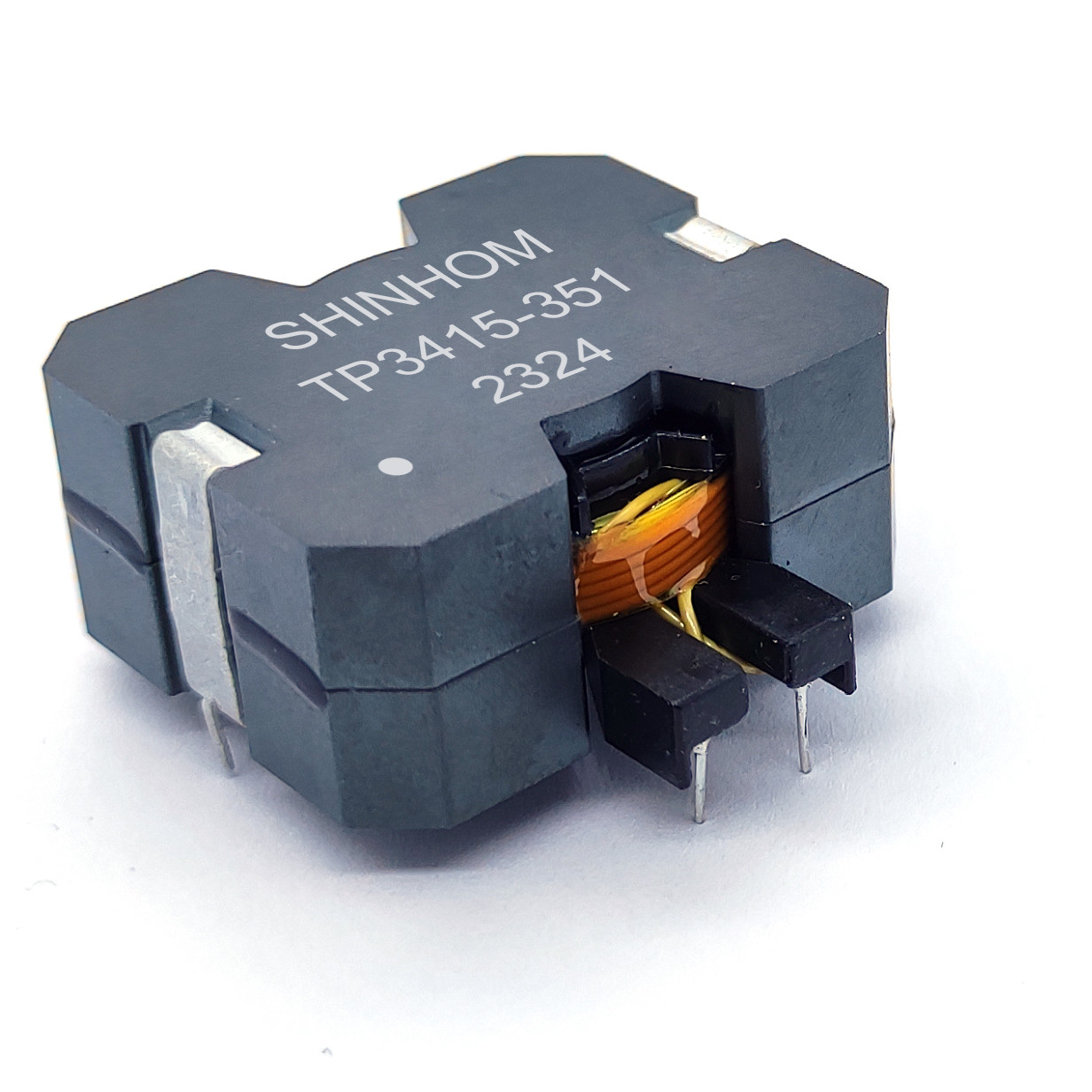

65VDC Pulse Transformer For Inverter, 350KHz Inverter Transformer

Negotiation
MOQ
Negotiation
Price
65VDC Pulse Transformer For Inverter, 350KHz Inverter Transformer
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Inverter Transformer
Power: 375W
Operation Temperature: -40℃ To +65℃
Isolation: 3000Vdc
Frequency: 350KHz
Input Voltage: 65VDC
Highlight:

High Power Planar Transformer

,

Inverter Pulse Transformer

,

350KHz Inverter Transformer
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TP3415
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

Pulse Transformer for inverter , inverter transformer



  1. Turns ratio: (3-4):(2-1)=1:6
  2. L(3-4): 3.2uH Min@10KHz,0.1V
  3. Lk(2-1): 2.2uH Max@10KHz,0.1V
  4. DCR(3-4): 4.0mΩ Max
  5. DCR(2-1): 195mΩ Max
  6. Pri rated current: 25.58A(98A Peak)
  7. Sec rated current: 3.44A(16.3A Peak)
  8. Pri rated voltage: 65V
  9. Sec rated voltage: 311V(389V Max)
  10. Rated frequency: 50KHz
  11. Rated power: 375W
  12. Hi-Pot: 3000Vac, 1mA,60S Coil to C oil
  13. Operating temperature: -40℃ to +65℃



65VDC Pulse Transformer For Inverter, 350KHz Inverter Transformer 0
