SMD Installation High Frequency Current Transformer 250A Max 800:1

Negotiation
MOQ
Negotiation
Price
SMD Installation High Frequency Current Transformer 250A Max 800:1
Features Gallery Product Description Request A Quote
Features
Specifications
Turns: 800Ts
Installation: SMD
Insulation Voltage: 3000Vac
Frequency Range: Up To 1MHz
Sensed Current: Up To 250A
Operating Temperature: -40℃ To 125℃
Highlight:

High Frequency Current Transformer 250A

,

SMD High Frequency Current Transformer

,

3000Vac Current Sense Transformer
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: CT Series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

High Frequency Current Transformer , Current Transformer , 250A Max , 800:1



  • Current transformers comprises various versions for a large number of applications. Strong insulation voltage between the primary and the secondary, up to 3kV/1min, without breakdown.
  • The insulation resistance should be bigger than 1000MΩ between the primary and secondary windings.
  • Best-performance core designs in close cooperation with our customers.
  • Meet IEC60 44-1 standard



TECHNICAL INFORMATION:

  • Turns ratio: 1:800
  • DCR: 12.0Ω±15%
  • Rated Input current: 25A
  • Max input current: 250A
  • Rated output current: 0.03125A@25A Input
  • Max output current: 0.3125A@250A Input
  • Hi-Pot: 3.0KVac,50Hz,1mA,2s winding to body
  • Opertaing temperature: -40℃ to +125℃
  • Max error: 0.25A-0.5A input: ±5%
  • 5A-25A input: ±1%
  • 25A-250A input: ±5%

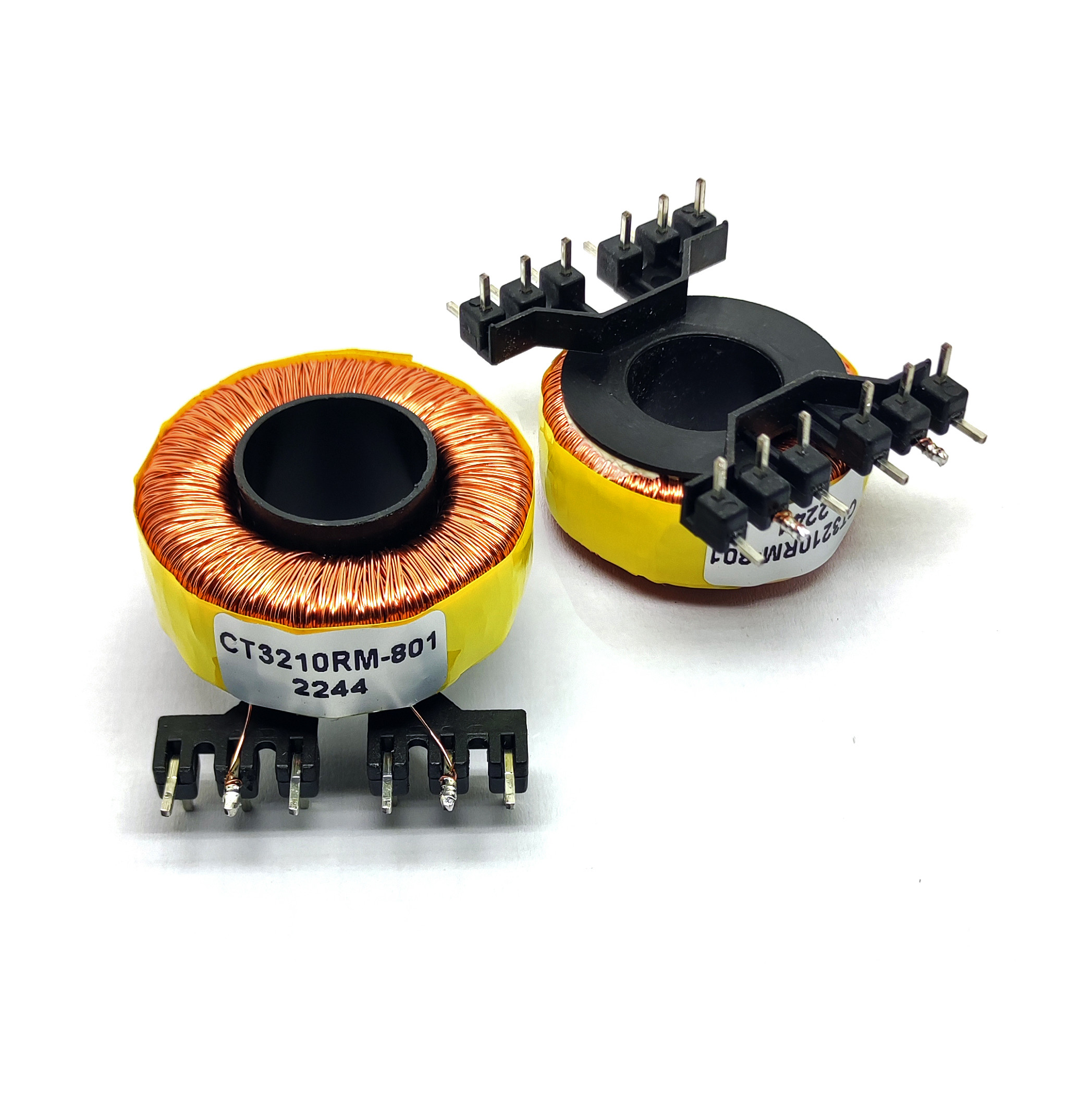

SMD Installation High Frequency Current Transformer 250A Max 800:1 0



Notes: Product specifications can be customized
