Excellent Thermal Stability Common Mode Choke Flat Wire High Current Inductor
Product Description

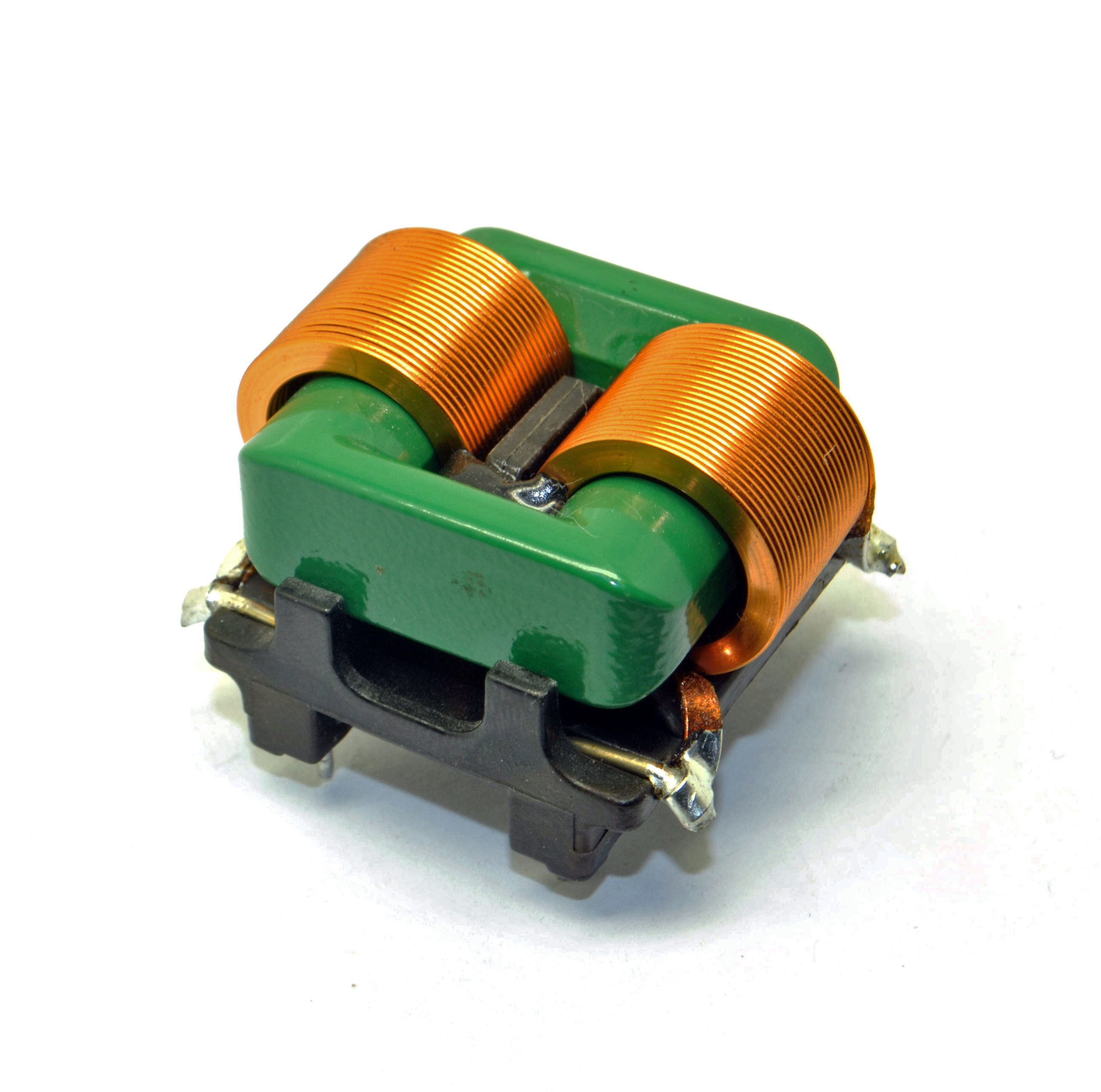

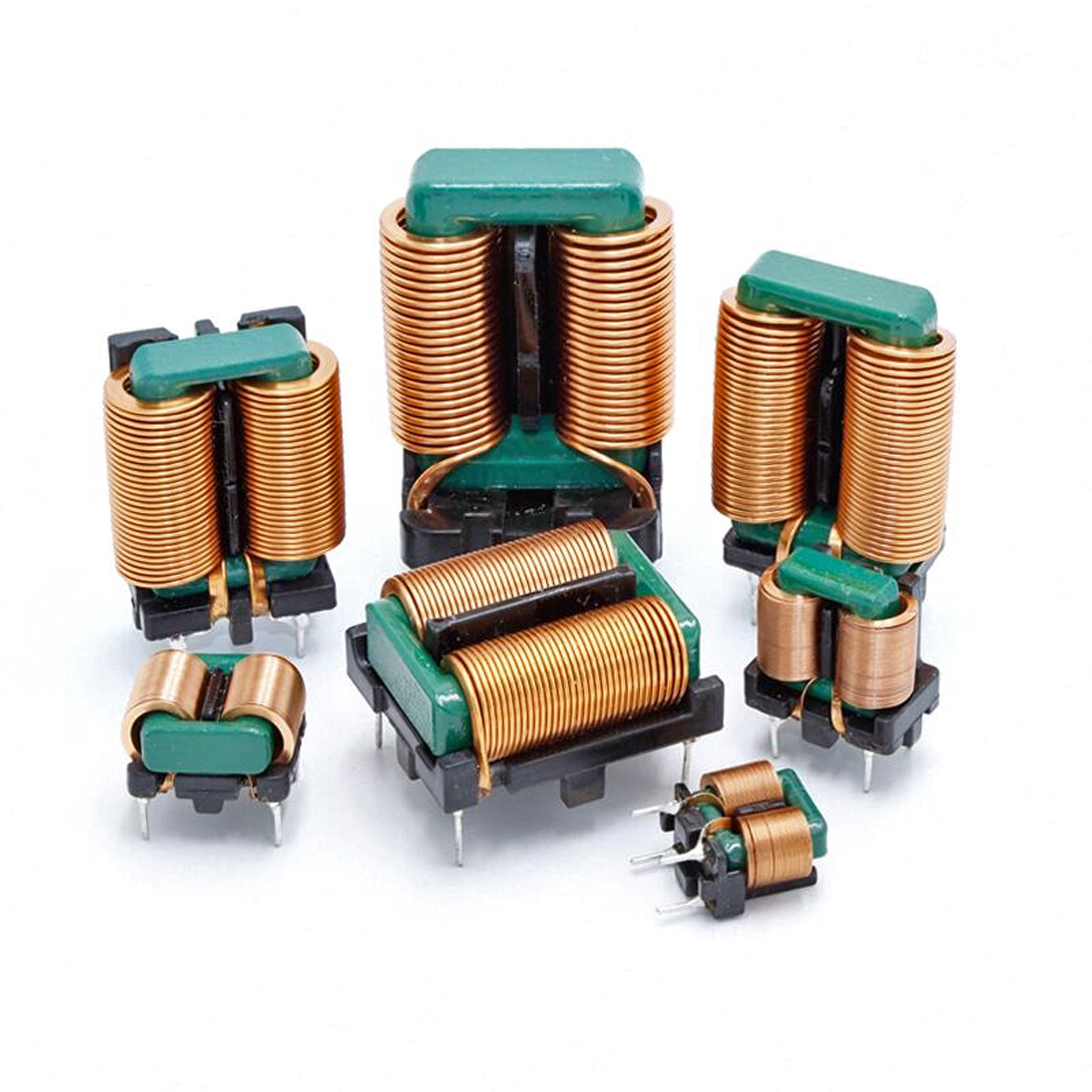

High Frequency Flat wire high current common mode chokes Coil and the inductance can be customized
FEATURES:
Rated voltage (V): 85 to 265V AC, 50/60Hz
Turns ratio: n1: n2=1:1
Insulation resistance: 100MΩ min at 500DC
Temperature rise: 50°C max

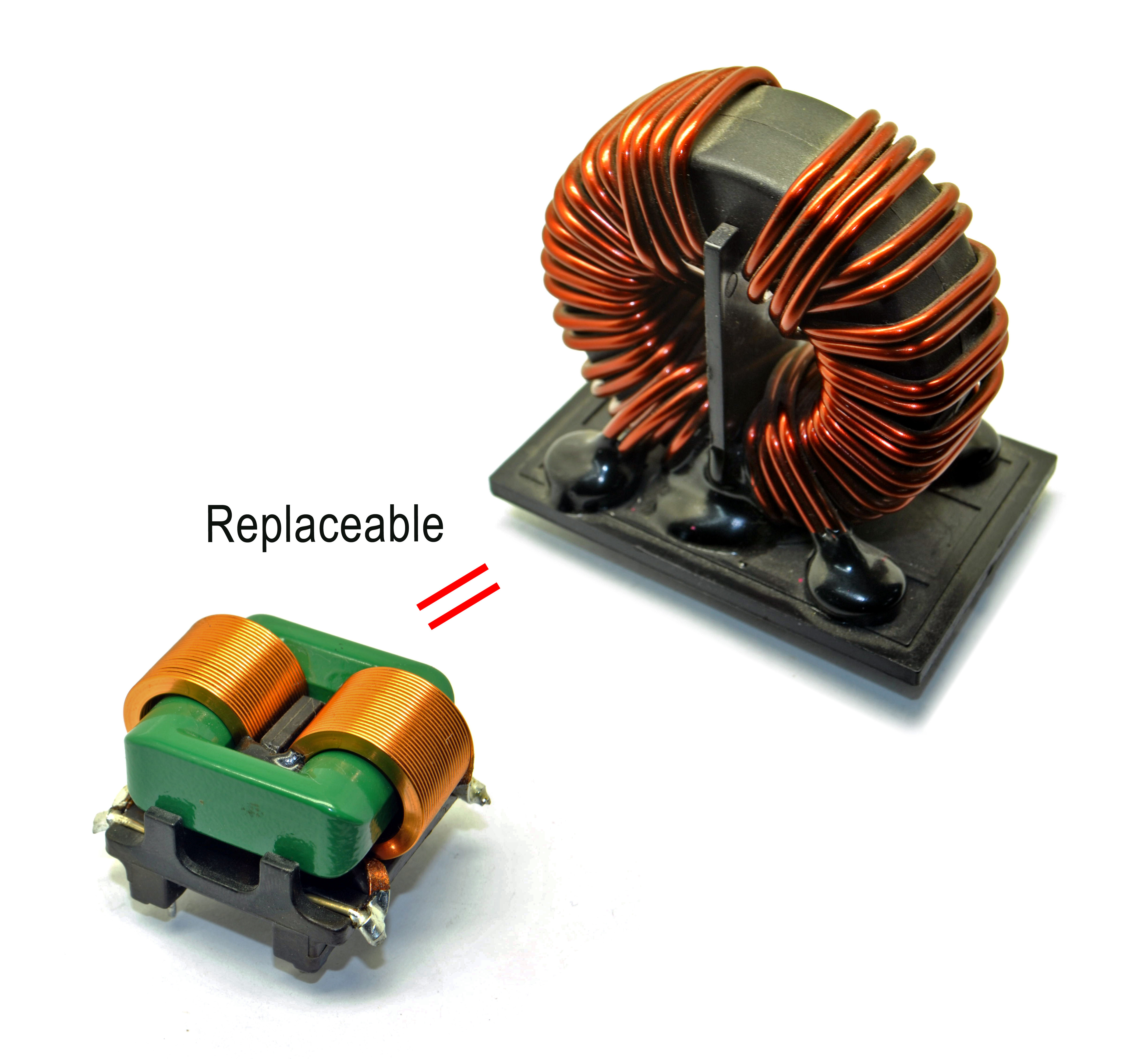

Replacement for: EE16,EE19,EE25,EF16,EF20,EF25,UU10.5, UU16,toroidal common mode inductors
High current, small profile, high efficiency with High frequency skin effect of flat wire, unit current density can reach 1.5-2 times of round copper wire, and the volume will be 0.5-1.0 times smaller under the same condition
Lower temperature coefficient, only around once layer winding, perfect efficiency of heat sink , the temperature raise is much lower than the toroidal inductor
Interturn capacitance is smaller than toroidal core, high insulation strength and high reliability
The closed magnetic core design
Use the flat wire, improving the space factor
Single phase winding, thereby dramatically reduce stray capacitance
EMI suppression is excellent
Fully automatic winding, neat line arrangement, no overlapping, high production efficiency, low labor
APPLICATION:
Personal Computer
Switching power supply, Adapter and UPS
Computer products
DVD
LED power supply
LCD TV & Monitor Displays Power Boards
Consumer Electric Products & Battery Charger, Printers
NOTES:.
Inductance Testing: HP4284A, 100kHz/1V or equivalent
RDC:QuadTech 1880 Milliohmmeter
Isat Current L value drop 65% typ.at IDC against its initial value
Irms Temperature rise 40℃Max Reference Ambient temperature
Solderability: 75% of the lead wire Shall be covered
