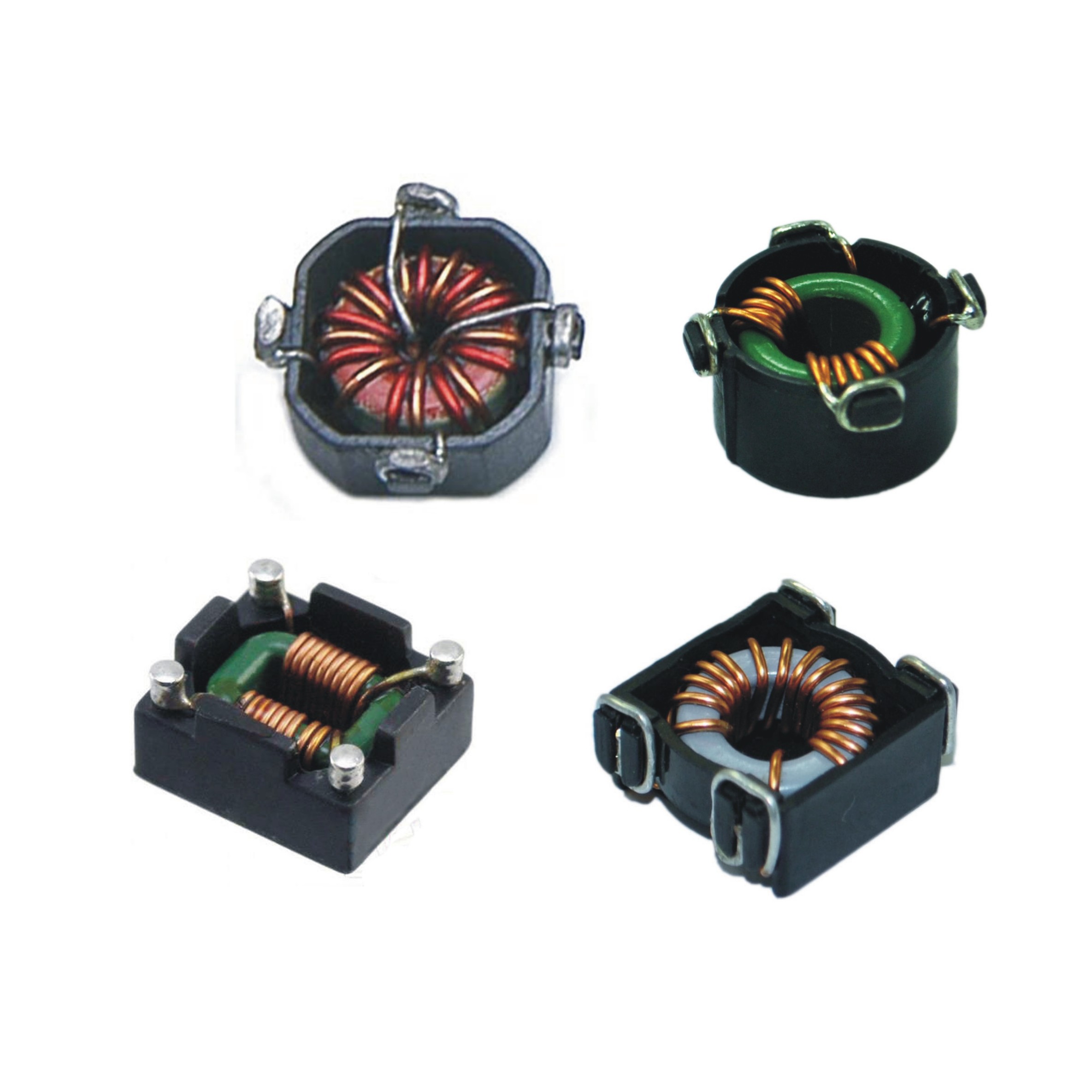

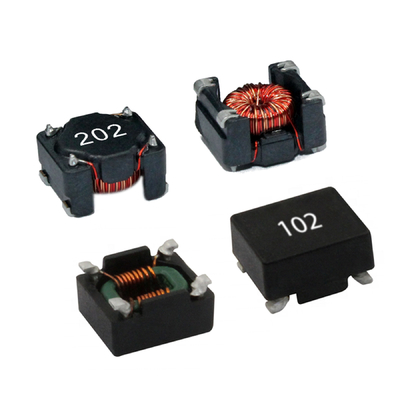

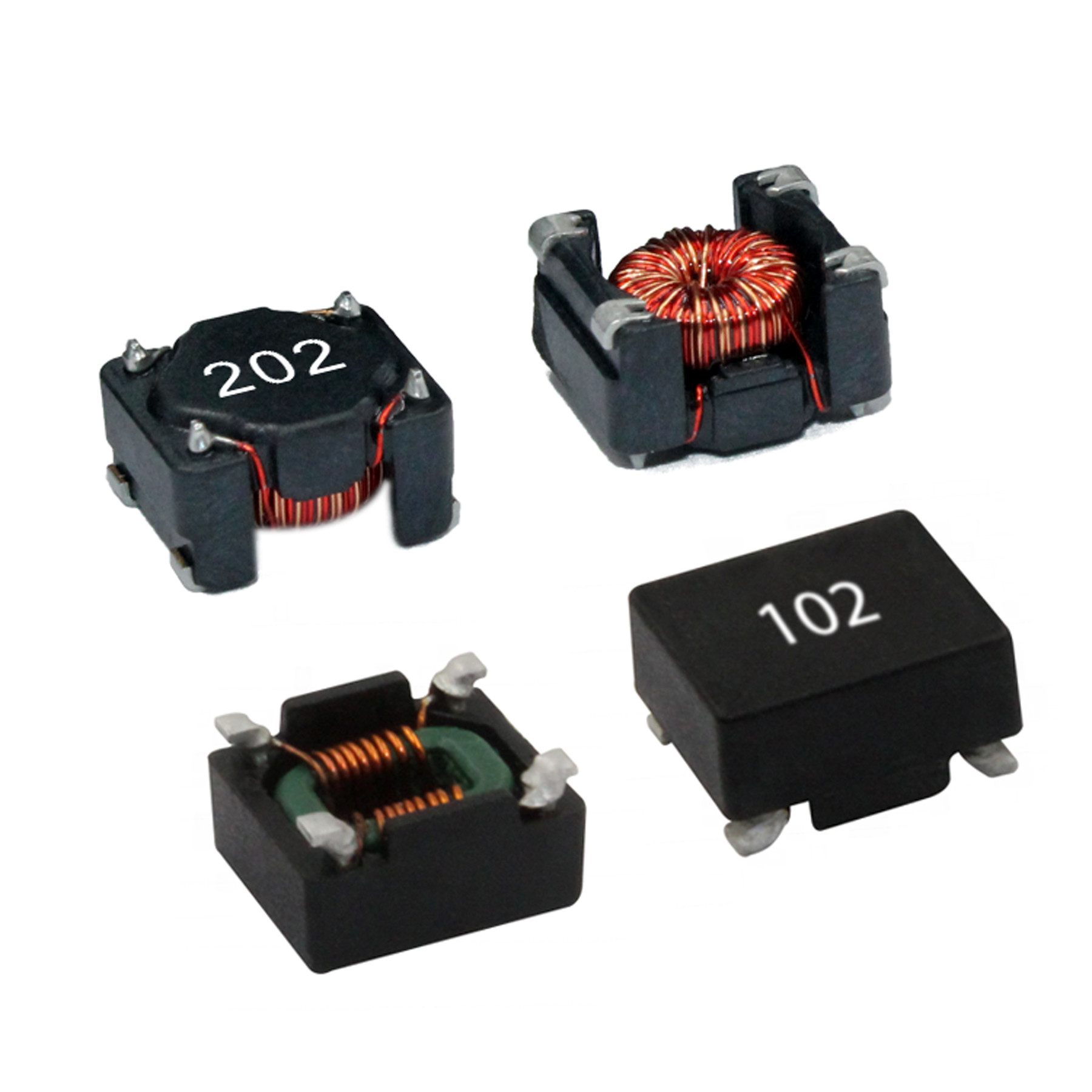

SMD Toroidal Core Common Mode Choke Inductor 10mH

STRF Seires Common Mode Inductor , SMD Toroidal Core Common Mode Choke

        Toroidal Inductors are used for applications that include current sense transformers, common mode inductors, switching regulator inductors, input filter inductors, and more. These inductors provide excellent value - they are generally smaller in size and cost less than other inductors.

FEATURES:

• Common mode chokes for AC Power lines
• High impedance to minimize common mode noise
• Excellent EMI performance
• Operate temperature range :-40 ℃ to + 125℃(Including self temperature rise)
• Storage temperature range: -40℃ to +125℃

COMMON APPLICATIONS:

• DC/DC, AC/DC converter
• Filter and Noise suppression
• Communication System
• Automotive Systems
• Liquid Crystal Televisions

TECHNICAL INFORMATION:

• IDC: Temp. rise 40℃ Max
• lnductance test: HP4284A 100KHz 0.1V
• RDC:QuadTech 1880 Milliohmmeter
• Solder methods: Vapor Phase, Infrared Reflow
• Resistance to soldering heat:260℃ for 10 seconds
• Solvent resistance: Conforms to MIL-STD-202E

More sizes to choose from
