HVAC Epoxy Split Core Current Transformer 50Hz Contactless
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Frequency: 50 To 1000Hz
Windows: 13X13mm
Class: 1.0
Case: Plastic
Customizable: Yes
Coil: Permalloy Core
Highlight:

Epoxy Split Core Current Transformer

,

Split Core Current Transformer 50Hz

,

Contactless Split Core Current Transformer

Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SCTK Series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Product Description

Split Core Current Transformer , Current Transformer , CT, High Accuracy Current Sensor



         The split core style current transformers are designed for fast and easy installation. The split core design permits non-contact current measurements through magnetic field induction without disconnecting cables circuits for CT installation. This method permits a safer, easier and portable current measurement.


Features:

  1. Split core design, safe, easy to install, portable
  2. Wide inner window, allowing clamping of big cables or bus-bars
  3. Test hole series size clamp leaker AC current transformer
  4. Split core current transformer with interleaved joint and hinge structure
  5. Wide range of sizes to accommodate all the existing installations


Applications:

  1. Electrical lines and equipment of current measurement, control and protection
  2. Measures AC current flow to electric motors, lighting, air condition equipment, etc
  3. Compatible with HVAC temperature control, power management, building automation system





Mechanical Parameter:

  1. Case : PC /UL94-V0
  2. Bobbin : PBT
  3. Core : Permalloy
  4. Internal structure : Epoxy
  5. Construction : Tie
  6. Operating Temp : -25℃~+75℃
  7. Operating Humidity : ≤85%
  8. Output Connection : UL1015 22AWG Wire(twinsted wire) 2.0m

More current transformer products:

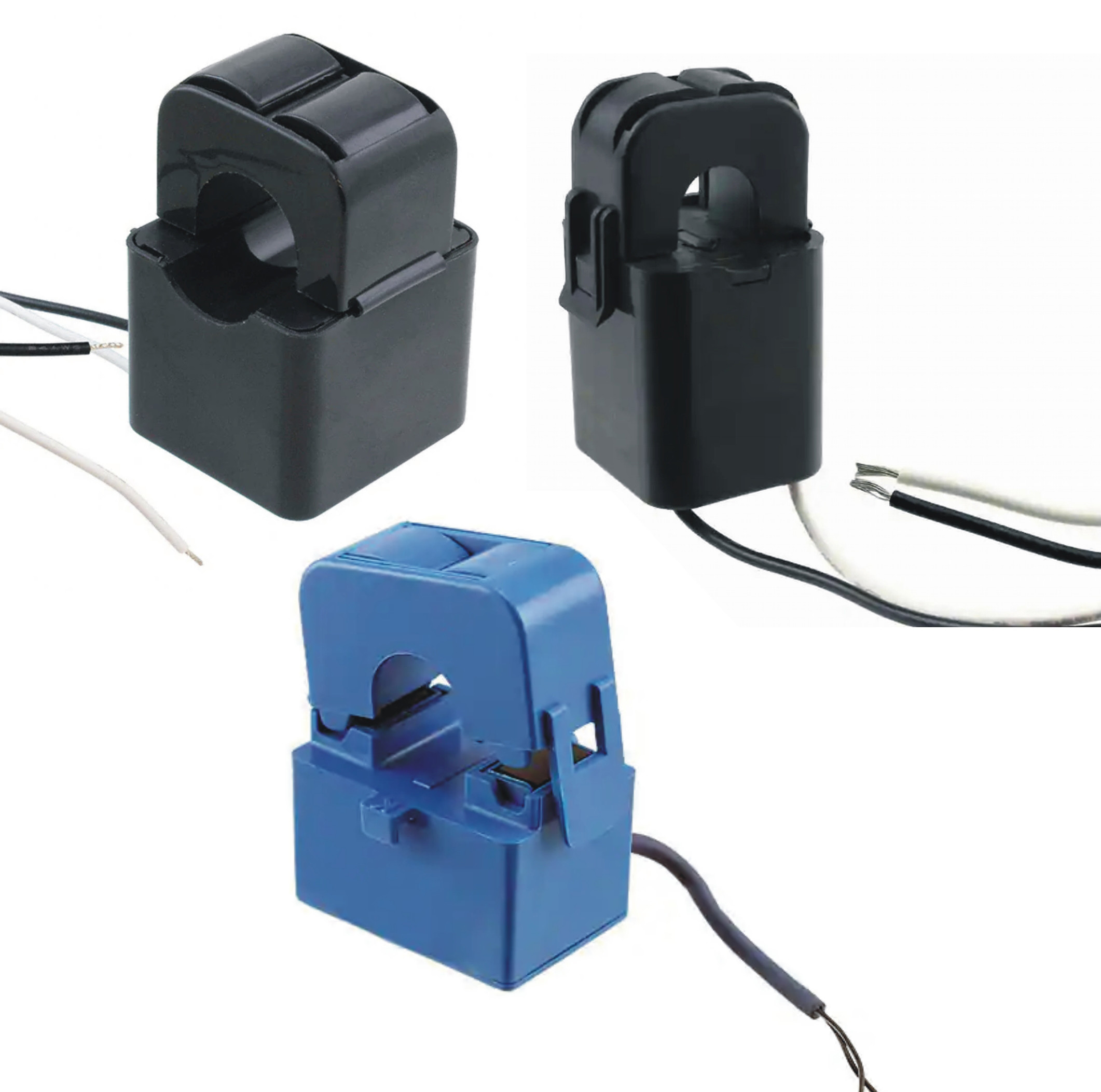

HVAC Epoxy Split Core Current Transformer 50Hz Contactless 0

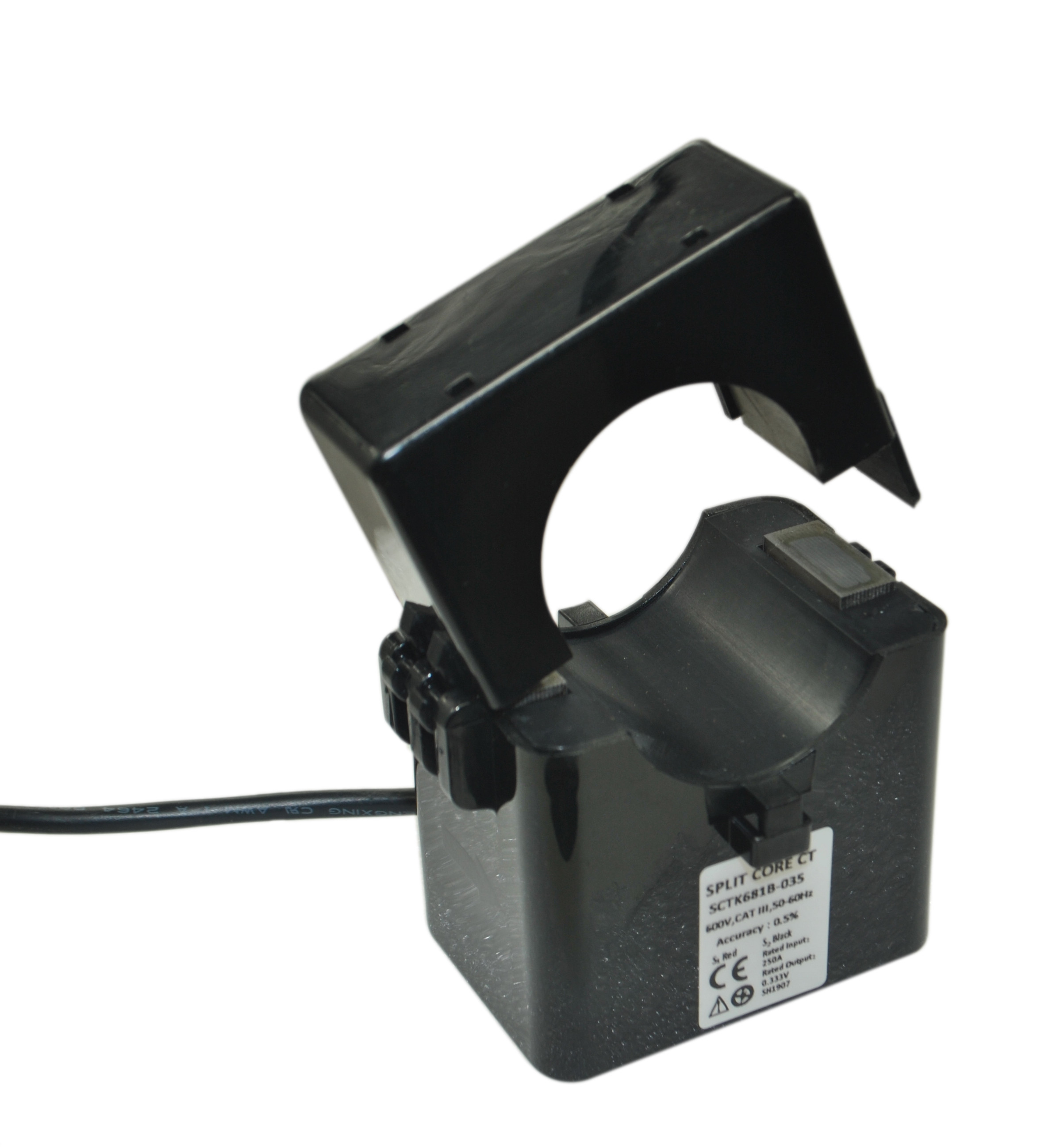

HVAC Epoxy Split Core Current Transformer 50Hz Contactless 1

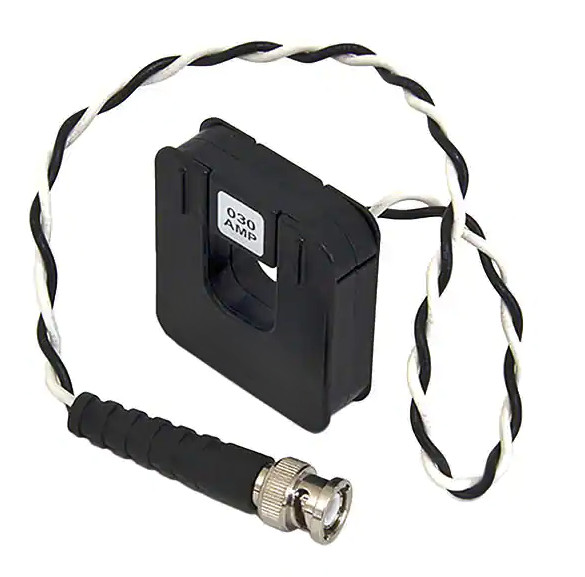

HVAC Epoxy Split Core Current Transformer 50Hz Contactless 2



Notes: Product specifications can be customized
