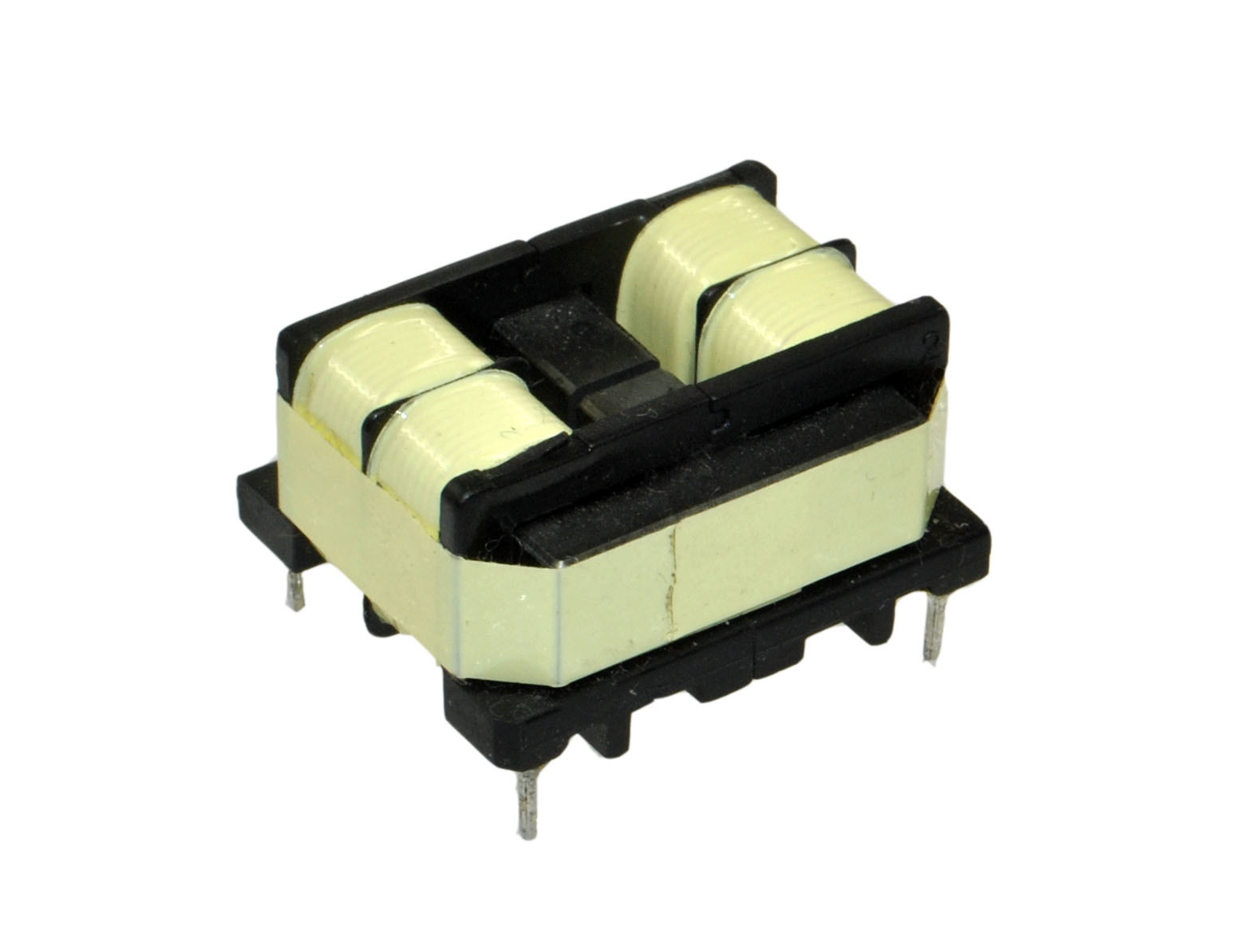

Bypass Coiled Common Mode Choke For RFI Suppression

Negotiation
MOQ
Negotiation
Price
Bypass Coiled Common Mode Choke For RFI Suppression
Features Gallery Product Description Request A Quote
Features
Specifications
Mode: Common Mode Choke
Core: Ferrite Hollow Square
Custom: YES
Winding Process: Horizontal
Operating Temperature: -25ºC To +105ºC
Hi-Pot: 1500Vac
Highlight:

Coiled Common Mode Choke

,

Bypass Common Mode Choke

,

RFI Suppression Common Mode Choke
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: LFET20
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

Common Mode Choke Coils with Bypass for RFI Suppression, Two Series are Available





APPLICATION:

  • Common mode choke coils with bypass
  • Common mode and differential inductance in one single component
  • excellent EMI suppressor for LED ballast
  • High-frequency and low loss
  • Ideal for lighting ballast and SMPS application, AC-DC, DC-DC, motor regulation, AC regulation RoHS compatible (Pb-free) versions are available
  • Customized specifications are welcome



Electrical parameters:
  • L: 1.25mH Min@1.0KHz,0.1V
  • Lk: 320uH Min@1.0KHz,0.1V
  • DCR: 120mΩ Max
  • Irms: 1.5A Max(Temp. rise 40℃ Max)
  • Isat: 2.0A Max
  • (Inductance drop 20% Max with Different mode)
  • Operating temperature: -40℃ to +105℃
  • Storage temperature: -40℃ to +105℃

Bypass Coiled Common Mode Choke For RFI Suppression 0



Measuring instrument

     Bypass Coiled Common Mode Choke For RFI Suppression 1              Bypass Coiled Common Mode Choke For RFI Suppression 2

Bypass Coiled Common Mode Choke For RFI Suppression 3









Notes: Customized is available
