8 Windings SMD Data Line EMI Filter Common Mode Choke

Negotiation
MOQ
Negotiation
Price
8 Windings SMD Data Line EMI Filter Common Mode Choke
Features Gallery Product Description Request A Quote
Features
Specifications
Core: Toroidal Ferrite Core
Winding: 8 Windings
Case: Ceramic Case
Rated Current: 0.5A
Specification: RoHS/UL
Type: EMI Filter
Highlight:

EMI Filter Common Mode Choke

,

8 Windings Common Mode Choke

,

Ceramic Case Common Mode Choke
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SDLF8005
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

Common mode inductor , SMD choke coil, 8 windings SMD Data Line EMI Filter with Ceramic case



FEATURES:​

  1. Inductance: 5.0uH Min@1.0MHz,0.1V
  2. RDC: 200mΩ Max
  3. Rated current: 500mA Max
  4. Operating temperature: -40℃ to +85℃
  5. Storage temperature: -40℃ to +85℃
  6. Excellent electrical isolation (300 Vrms)
  7. Terminations RoHS compliant tin-silver-copper over silver-platinum.
  8. Available in 8-line versions
  9. Exceptional common mode noise attenuation from 15 MHz to 300 MHz; passes signal line data below 300 MHz with minimal attenuation



PACKAGING:

  1. Packaging: 1000PCS/13 ''Reel
  2. Weight: 1.2Kg/Reel

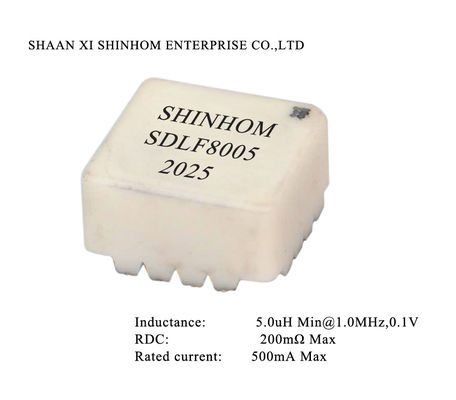

8 Windings SMD Data Line EMI Filter Common Mode Choke 0

Note: Product specifications can be customized.
